Reefs RC RAW800LP Brushless Servo (BLACK) 57kg

Reefs RC RAW800LP Brushless Servo (BLACK)

RAW800 Low Pro: Fully Programmable Servo

High Torque High Speed

4 POLE - Brushless

SUBMARINE WATERPROOF: 7 Point Seals
Magnetic Angle Sensor
Voltage 4.8V - 8.4V
REEFS LINK required for Programming (Optional)
Internal: Steel Gears
CNC Aluminum Casing
Bearing Type: 2 Ball Bearings
Weight: 2.3oz / 66gm

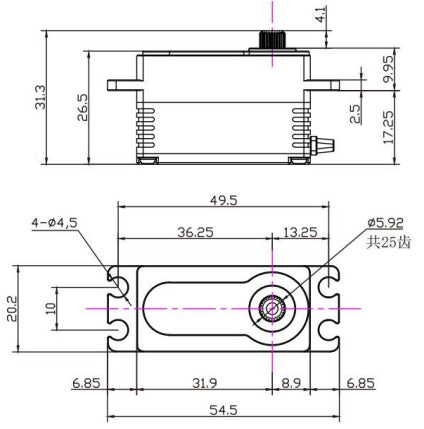

Dimension LWH: 1.6 x .79 x 1.16 / 40.8x20.2x29.5mm
Torque: 635oz @ 6v/ 715oz @7.4v/ 800oz @8.4v
Speed: .12sec @6v/.10sec @7.4v/.09sec @8.4v
Spline: 25T / Dead Band Width: 2¦Ìs
BEC Not Req. Recommended for max performance

• 45kg @ 6v
• 51kg @ 7.4v
• 57kg @ 8.4v
